Overview
This project implements an AI-based image retrieval system that enables fast and accurate similarity searches using deep learning and vector indexing. Images are first processed through a ResNet-50 convolutional neural network, which extracts high-dimensional feature embeddings representing their visual content. These embeddings are then indexed using FAISS (Facebook AI Similarity Search), a powerful library optimized for efficient similarity search in large datasets. By combining deep feature extraction with vector-based retrieval, the system can quickly identify and return images that are visually similar to a query image, making it suitable for applications such as content-based image search, duplicate detection, and visual recommendation systems.
Dataset
The Caltech101 dataset is a widely used benchmark in computer vision that contains over 9,000 images across 101 object categories plus one background class. Each category includes between 40 and 800 images, featuring a variety of objects such as animals, vehicles, instruments, and household items. The images are of medium resolution and primarily centered objects, making the dataset ideal for tasks like image classification, object recognition, and feature extraction.
Data Preprocessing
All images from the Caltech101 dataset undergo a structured preprocessing pipeline to ensure consistency and robustness during training. Each image is resized to a fixed input dimension (224×224) and converted to RGB format. During training, extensive data augmentation is applied—including random cropping, horizontal flipping, rotation, color jittering, affine transformations, and random erasing—to increase data diversity and reduce overfitting. The validation images are only resized and normalized using ImageNet mean and standard deviation values, matching the input expectations of ResNet-50.
Architecture
The architecture is based on a transfer learning approach using a pre-trained ResNet-50 network. The convolutional backbone is initially frozen to preserve pre-learned low-level visual features, while deeper layers are progressively unfrozen during training to allow fine-tuning. The fully connected classification layer of ResNet-50 is replaced with a custom embedding module consisting of a linear projection layer reducing 2048-dimensional ResNet features to 512 dimensions, followed by batch normalization, ReLU activation, and dropout (50%) for improved stability and generalization. A final linear layer produces a 128-dimensional feature embedding used for both classification and retrieval. A lightweight classifier head maps these embeddings to 101 output classes corresponding to the Caltech101 object categories. Label smoothing is applied during training to enhance model calibration and reduce overconfidence.
Performance
The model is trained using the AdamW optimizer with cosine annealing learning rate scheduling and progressive layer unfreezing to ensure stable convergence. After 30 epochs of training, the ResNet-50 transfer learning model achieved an impressive 96.95% validation accuracy, demonstrating strong generalization across diverse object categories. The trained model not only performs accurate classification but also provides normalized embeddings suitable for efficient image similarity search using FAISS, enabling high-speed retrieval of visually similar images from large datasets.
FAISS Vector Indexing

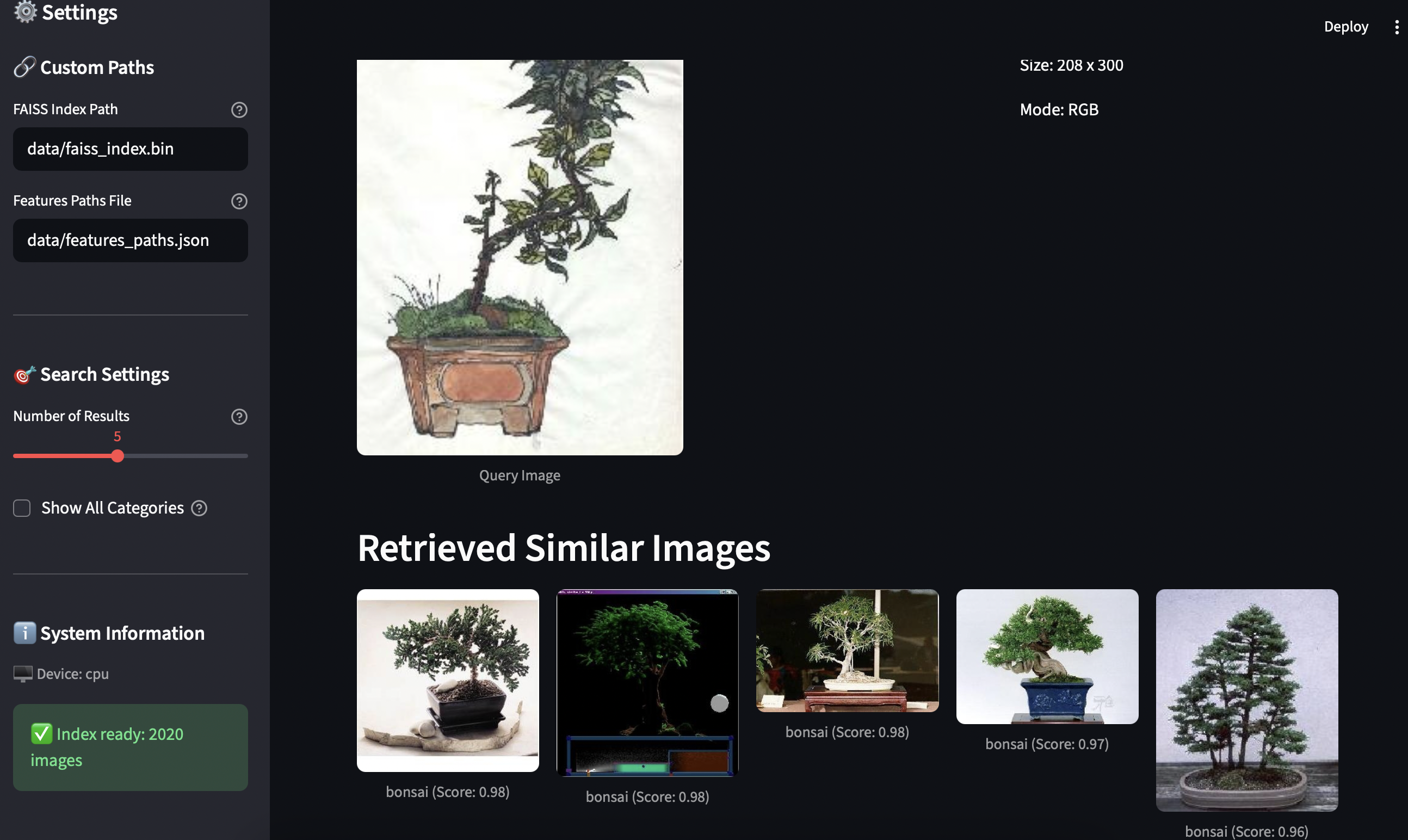

The system uses FAISS (Facebook AI Similarity Search) for fast, large-scale image retrieval. After extracting normalized feature embeddings from the trained ResNet-50 model, these vectors are stored in a FAISS index. When a query image is given, its embedding is compared to all indexed vectors using cosine similarity, efficiently returning the top matches. This enables real-time retrieval of visually similar images, even across large datasets.
Conclusion
This project enhanced my understanding of transfer learning, feature extraction, and image similarity retrieval. Using a pre-trained ResNet-50 with FAISS indexing, I learned how to build an efficient and scalable AI system for visual search. The process improved my skills in model fine-tuning, data preprocessing, and performance evaluation, resulting in a strong 96.95% validation accuracy. Overall, this work provided valuable experience in applying deep learning to real-world computer vision tasks.
